78L

材 質：鎳鉻鉬合金，扭力高，不易變形，耐撞擊，且不易脆斷。為目前此系列產品最佳材質。
表面處理：磷酸錳，防銹較佳。
建 議：所有產品應搭配適合扭力大小之工具使用，使產品壽命增加，不易發生危險。

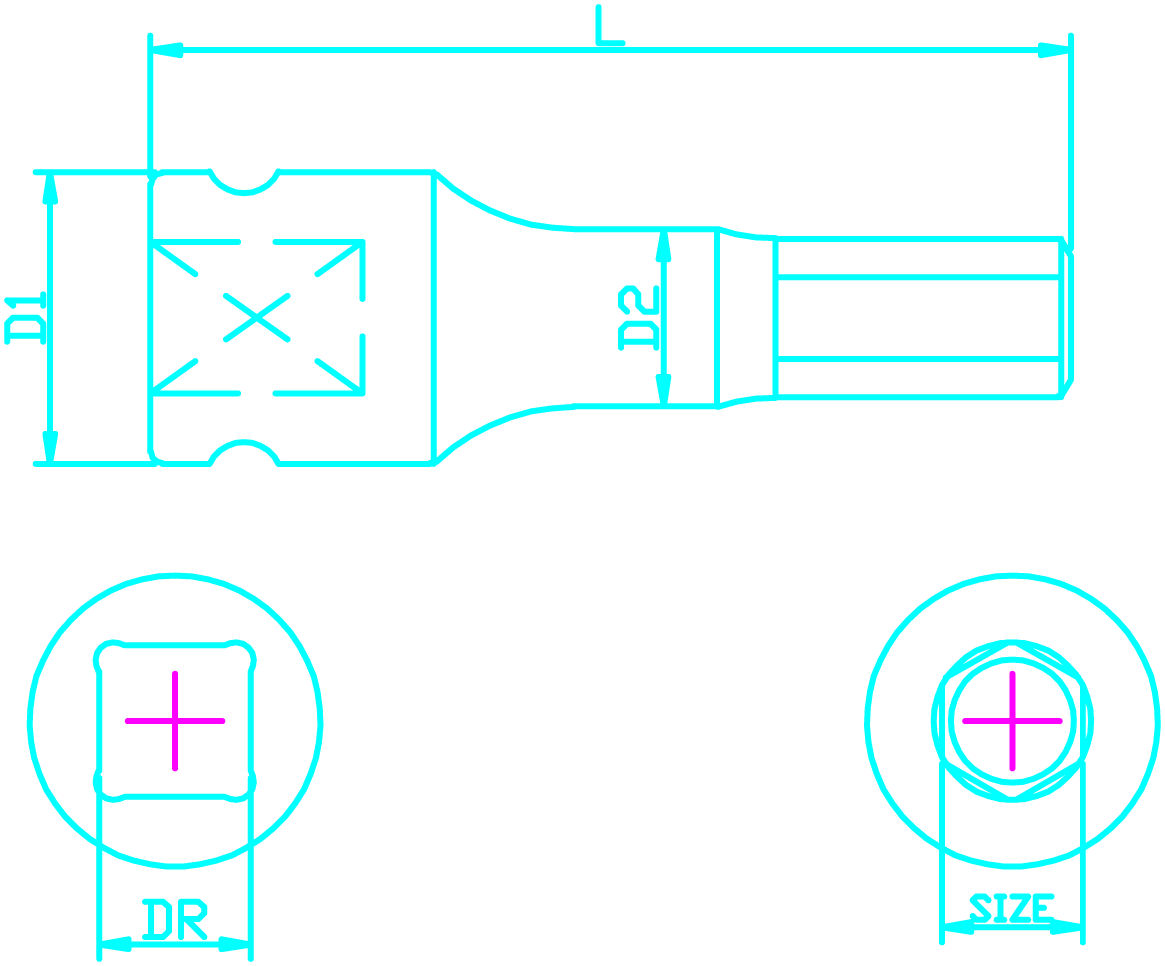

CD.NO. DR SIZE D1 Ø/mm D2 Ø/mm L/mm WEIGHT/g
GA4Z078H04 1/2 H4 25 6 78 83.7
GA4Z078H05 1/2 H5 25 7 78 84.5
GA4Z078H06 1/2 H6 25 8 78 83.7
GA4Z078H07 1/2 H7 25 10 78 93.9
GA4Z078H08 1/2 H8 25 10.5 78 92.5
GA4Z078H09 1/2 H9 25 12 78 100.7
GA4Z078H10 1/2 H10 25 13 78 107.7
GA4Z078H11 1/2 H11 25 15 78 119.5
GA4Z078H12 1/2 H12 25 15 78 126.4
GA4Z078H13 1/2 H13 25 16 78 133.1
GA4Z078H14 1/2 H14 25 16.2 78 140
GA4Z078H15 1/2 H15 25 16.8 78 148.3
GA4Z078H16 1/2 H16 25 17.9 78 159.5
GA4Z078H17 1/2 H17 25 19.2 78 174.1
GA4Z078H18 1/2 H18 25 20.2 78 184.1
GA4Z078H19 1/2 H19 25 21.3 78 198.3
GA4Z078H20 1/2 H20 25 22.4 78 212.3
GA4Z078H21 1/2 H21 25 23.4 78 227.8
GA4Z078IH05 1/2 H5/32 25 8 78 78.7
GA4Z078IH06 1/2 H3/16 25 8 78 79.2
GA4Z078IH07 1/2 H7/32 25 8 78 81.4
GA4Z078IH08 1/2 H1/4 25 8 78 82.9
GA4Z078IH09 1/2 H9/32 25 10 78 90.6
GA4Z078IH10 1/2 H5/16 25 10.5 78 91.7
GA4Z078IH11 1/2 H11/32 25 13 78 102.8
GA4Z078IH12 1/2 H3/8 25 13 78 106.1
GA4Z078IH14 1/2 H7/16 25 15 78 119.9
GA4Z078IH16 1/2 H1/2 25 16 78 133.6
GA4Z078IH18 1/2 H9/16 25 16.1 78 141.5
GA4Z078IH20 1/2 H5/8 25 18 78 160.4
GA4Z078IH22 1/2 H11/16 25 19.6 78 177.6
CD.NO. DR SIZE D1 Ø/mm D2 Ø/mm L/mm WEIGHT/g
GA4Z060H04 1/2 H4 25 6 60 75.5
GA4Z060H05 1/2 H5 25 7 60 76.1
GA4Z060H06 1/2 H6 25 8 60 77.3
GA4Z060H07 1/2 H7 25 10 60 80.5
GA4Z060H08 1/2 H8 25 10.5 60 82.5
GA4Z060H09 1/2 H9 25 12 60 92.1
GA4Z060H10 1/2 H10 25 13 60 93
GA4Z060H11 1/2 H11 25 15 60 101
GA4Z060H12 1/2 H12 25 15 60 105.5
GA4Z060H13 1/2 H13 25 16 60 109.5
GA4Z060H14 1/2 H14 25 16.2 60 112.3
GA4Z060H15 1/2 H15 25 16.8 60 118.4
GA4Z060H16 1/2 H16 25 17.9 60 125.6
GA4Z060H17 1/2 H17 25 19.2 60 133.6
GA4Z060H18 1/2 H18 25 20.2 60 141.1
GA4Z060H19 1/2 H19 25 21.3 60 150.2
